The Hardware Sensor Status Reported in the vSphere Web Client Is Not Accurate For HPE ProLiant Gen10 Servers Running VMware ESXi 6.0/6.5/6.7 With HPE Integrated Lights-Out 5 (iLO 5) Firmware Version 1.30
NOTICE: The information in this document, including products and software versions, is current as of the Release Date. This document is subject to change without notice.
Release Date: 2018-08-20
Last Updated: 2019-08-23
DESCRIPTION
| Document Version | Release Date | Details |
|---|---|---|
| 4 | 08/23/2019 | Additional information has been added to the Resolution section. |
| 3 | 12/20/2018 | VMware ESXi 6.7 Update 1 Release Notes has been added to the Resolution section. |
| 2 | 12/19/2018 | A solution that fixes the issue has been provided. |
| 1 | 08/20/2018 | Original Document Release. |
On any HPE ProLiant Gen10 server running VMware VMware ESXi 6.0,VMware ESXi 6.5 or VMware ESXi 6.7 with HPE Integrated Lights-Out 5 (iLO 5) firmware version 1.30, warnings on some of the sensors viewed in the hardware status tab in the vSphere Web Client will be displayed.
Note: In the example below, the screenshots were taken from a ProLiant DL380 Gen10 with LOM, ALOM and slot1 NIC.
Similar warnings to the following will be displayed:
VMware ESXi 6.0

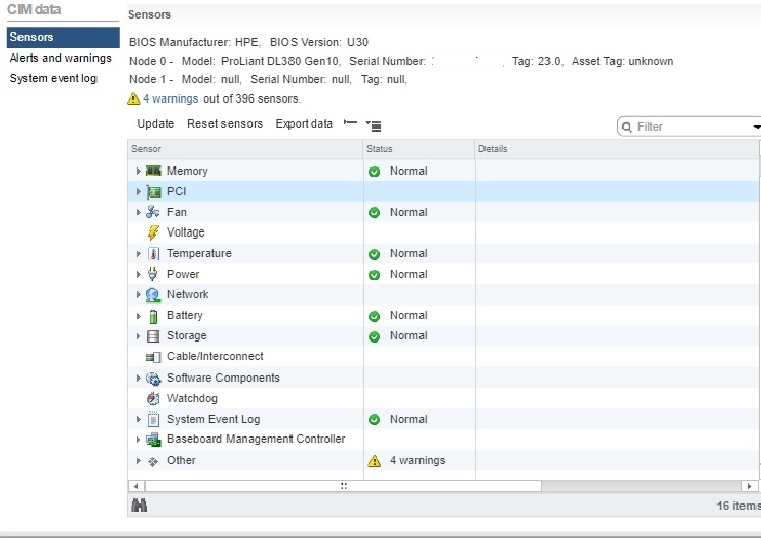

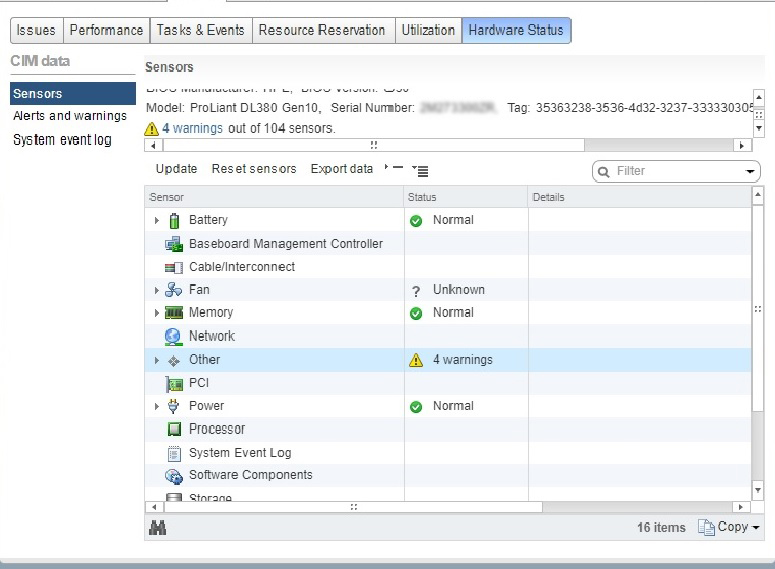

Sensors:

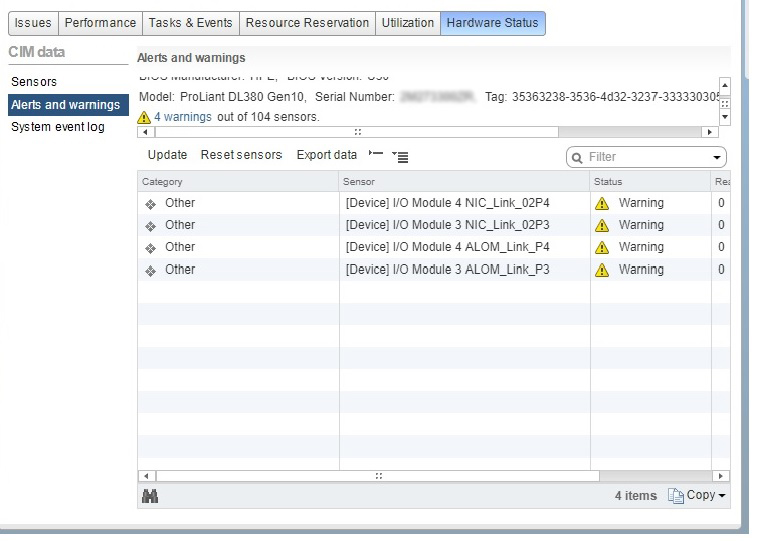

Alerts and warnings:
VMware ESXi 6.5
Sensors:

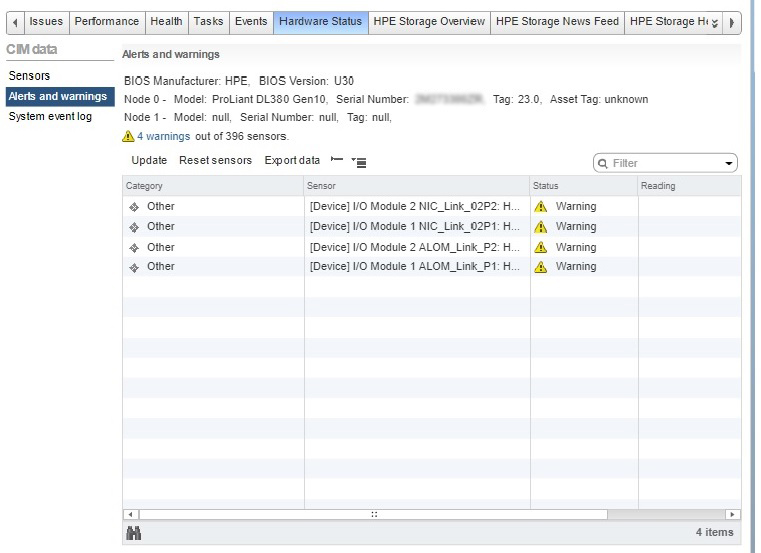

Alerts and warnings:
VMware ESXi 6.7

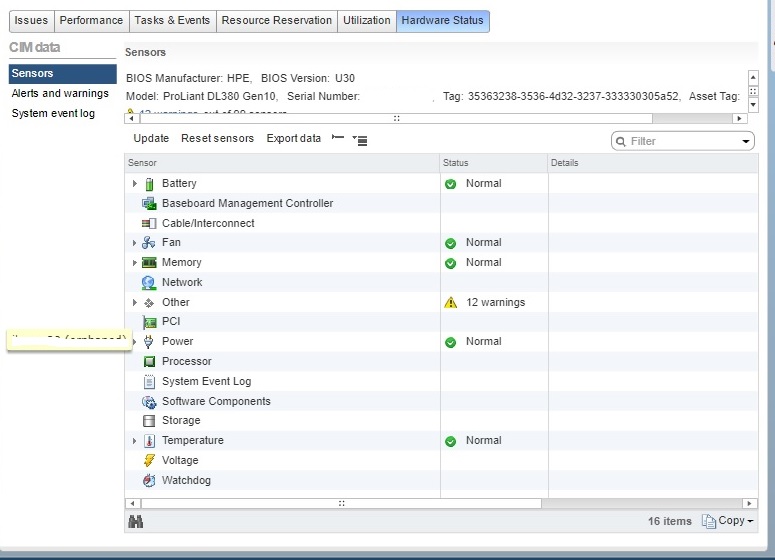

Sensors:

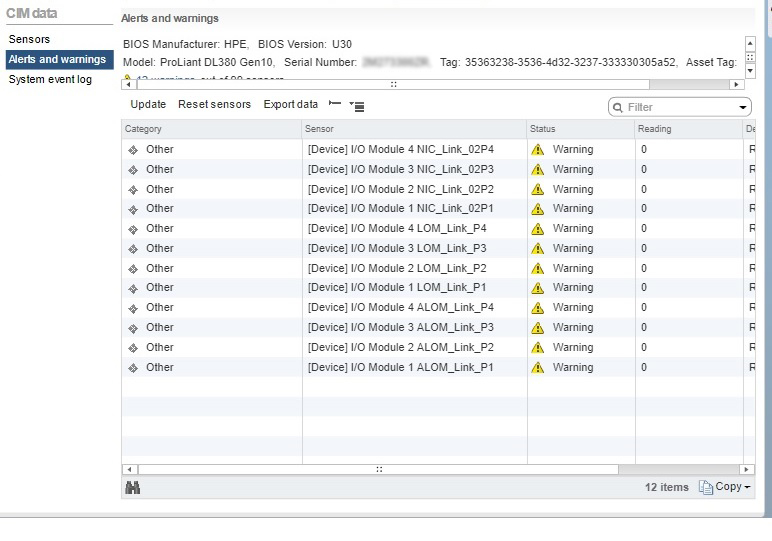

Alerts and warnings:
SCOPE
Any HPE ProLiant Gen10 server running VMware VMware ESXi 6.0,VMware ESXi 6.5 or VMware ESXi 6.7 with HPE Integrated Lights-Out 5 (iLO 5) firmware version 1.30.
RESOLUTION
To resolve this issue, update to HPE Integrated Lights-Out 5 (iLO 5) Firmware version 1.37 (or later), available at the following URL:
https://support.hpe.com/hpsc/swd/public/detail?swItemId=MTX_813034808f254a67a5ee2b8545
In addition, update to the following HPE customized ESXi Operating Systems versions:
- ESXi 6.0 U3 Sept 2018 (or later)
- ESXi 6.5 U2 Sept 2018 (or later)
- ESXi 6.7 U1 Oct 2018 (or later)
Available at the following URL:
https://www.hpe.com/us/en/servers/hpe-esxi.html
Important information:
- ESXi 6.5 U2 Sept 2018 requires to install the following patch:
VMware ESXi 6.5, Patch Release ESXi650-201811002
https://docs.vmware.com/en/VMware-vSphere/6.5/rn/esxi650-201811002.html
To know the resolved issues in VMware ESXi 6.7 Update 1, refer to the
VMware ESXi 6.7 Update 1 Release Notes
.
PR 2157501: You might see false hardware health alarms due to disabled or idle Intelligent Platform Management Interface (IPMI) sensors
Disabled IPMI sensors, or sensors that do not report any data, might generate false hardware health alarms.
This issue is resolved in this release. This fix filters out such alarms.
To know the resolved issues in VMware ESXi 6.7 Update 2, refer to the
VMware ESXi 6.7 Update 2 Release Notes
.
PR 2224767: You might see false hardware health alarms from Intelligent Platform Management Interface (IPMI) sensors
Some IPMI sensors might intermittently change from green to red and the reverse, which creates false hardware health alarms.
This issue is resolved in this release. With this fix, you can use the advanced option command esxcfg-advcfg -s {sensor ID}:{sensor ID} /UserVars/HardwareHealthIgnoredSensors to ignore hardware health alarms from selected sensors.
Note: One or more of the links above will take you outside the Hewlett Packard Enterprise web site. HPE does not control and is not responsible for information outside of the HPE web site.
RECEIVE PROACTIVE UPDATES: Receive support alerts (such as Customer Advisories), as well as updates on drivers, software, firmware, and customer replaceable components, proactively via e-mail through HPE Subscriber’s Choice. Sign up for Subscriber’s Choice at the following URL: Proactive Updates Subscription Form.
NAVIGATION TIP: For hints on navigating HPE.com to locate the latest drivers, patches, and other support software downloads for ProLiant servers and Options, refer to the Navigation Tips document .
SEARCH TIP: For hints on locating similar documents on HPE.com, refer to the Search Tips Document .
Hardware Platforms Affected: HPE ProLiant MicroServer Gen10, HPE ProLiant DL360 Gen10 Server, HPE ProLiant BL460c Gen10 Server Blade, HPE Synergy 660 Gen10 Compute Module, HPE ProLiant DL380 Gen10 Server, HPE ProLiant DL560 Gen10 Server, HPE ProLiant XL230k Gen10 Server, HPE Integrated Lights-Out 5 (iLO 5) for HPE Gen10 Servers, HPE ProLiant XL170r Gen10 Server, HPE ProLiant XL190r Gen10 Server, HPE ProLiant DL120 Gen10 Server, HPE ProLiant DL160 Gen10 Server, HPE ProLiant DL180 Gen10 Server, HPE ProLiant DL580 Gen10 Server, HPE ProLiant ML110 Gen10 Server, HPE ProLiant ML350 Gen10 Server, HPE ProLiant XL450 Gen10 Server, HPE ProLiant DL385 Gen10 Server, HPE ProLiant XL270d Gen10 Server
Operating Systems Affected: VMware ESXi Server 5.x
Software Affected: Not Applicable
Support Communication Cross Reference ID: SIK3681
